Lock50 HW04-C Tool Kit Superior Version - with SW28 Special Function (Anytime Use)

Lock50 JLR OBD HW04-C Key Programming and Diagnostics Toolkit

The Lock50 JLR OBD HW04-C is an advanced key programming and diagnostics toolkit specifically designed for Jaguar and Land Rover vehicles from 2017 to 2024+. This professional-grade solution enables locksmiths and automotive specialists to efficiently add and remove keys, program new RFAs, and work with both locked and unlocked security modules.

HW04-C is a professional-grade solution that handles locked modules, advanced key duplication, and supports newer models more robustly.

Important: If the BCM has been updated (typically post-2021), the standard HW04-C Toolkit cannot complete immobilizer programming for a new RFA. To enable RFA replacement without changing the BCM, the SW28 special function is required—available to buy in single or unlimited use.

Key Features:

• Key Programming & Module Replacement – Program new RFA modules, even when the existing module is locked.

• Quick Key Addition/Removal – Effortlessly add or remove keys when working with an unlocked RFA.

• Vehicle Compatibility – Designed for Jaguar & Land Rover models from 2017 to 2024+.

• Cost-Efficient – Reduces dealership dependency by providing direct programming solutions.

• Remote Support – Includes TeamViewer assistance for guided key programming and troubleshooting.

Free Features Included:

• SW01 - SW02: Read Jaguar Land Rover PCF7953 & NCF29A Key Frequency & Locked Status.

• SW04 - SW07: Key emulation for Jaguar Land Rover MCU SPC560B60L3 modules (2017-2024+).

• SW09 - SW14: Module key copying, MCU dumping, and key duplication for both locked & unlocked RFA/KVM modules.

• SW20 - SW23: Diagnostics, VIN programming, and module flashing for vehicles from 2006 to 2024+.

• SW24 - SW30: CCF Flashing, UWB/PEPS Modifications, Key Addition, and OEM UWB key support.

• SW31 - SW37: ALARM OFF functions, key duplication, DOIP programming, and Ethernet-based diagnostics (2022-2024+).

Difference between HW04-B and HW04-C

• Advanced Key Programming (HW04-C)
  Includes SW36 for key duplication and emergency start on locked RFAs and BCMs for 2017–2025+ PEPS UWB vehicles. Not available in HW04-B without upgrades.

• Broader Special Function Access
  HW04-C offers a wider range of software modules (SW01–SW36), including key emulation, used key reprogramming, and advanced RFA/BCM handling. HW04-B has limited access unless upgraded.

• Upgrade Path
  HW04-B users can upgrade to HW04-C via a software license, unlocking SW36 and additional functions. Subscription includes 12 months free, with annual fees thereafter.

• Programming When Modules Are Locked
  HW04-C supports full keyless entry and emergency start even when the RFA or BCM is locked—unlike HW04-B.

Supported Vehicle Makes & Models

• Jaguar E-Pace 2018–2025

• Jaguar F-Pace 2017–2026

• Jaguar F-Type 2016–2024

• Jaguar I-Pace 2019-2025

• Jaguar XE 2016-2026

• Jaguar XJ 2016-2019

• Range Rover L460 2022-2026

• Range Rover Sport L406 2013-2022

• Range Rover Sport L494 2016-2022

• Range Rover Velar 2018-2026

• Range Rover Evoque 2020-2026

• Land Rover Defender 2021-2026

• Land Rover Discovery Sport 2016-2025

• Land Rover Discovery  2017-2024

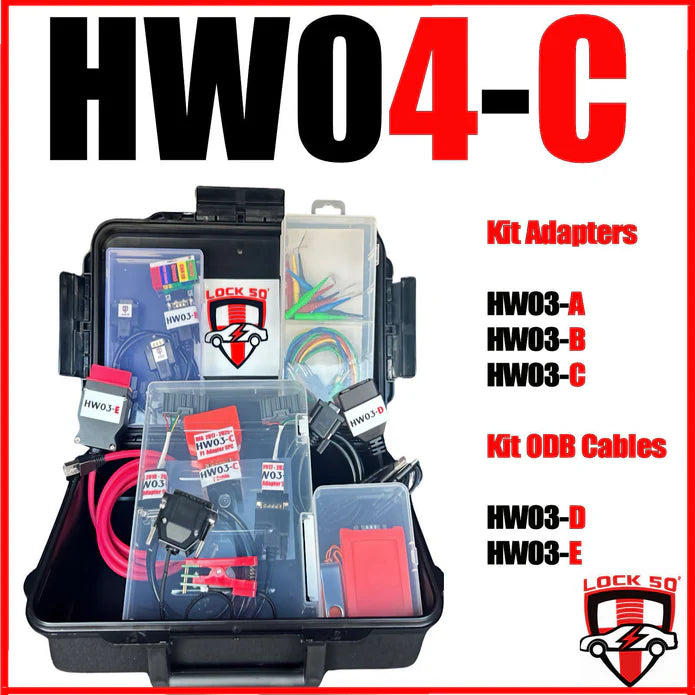

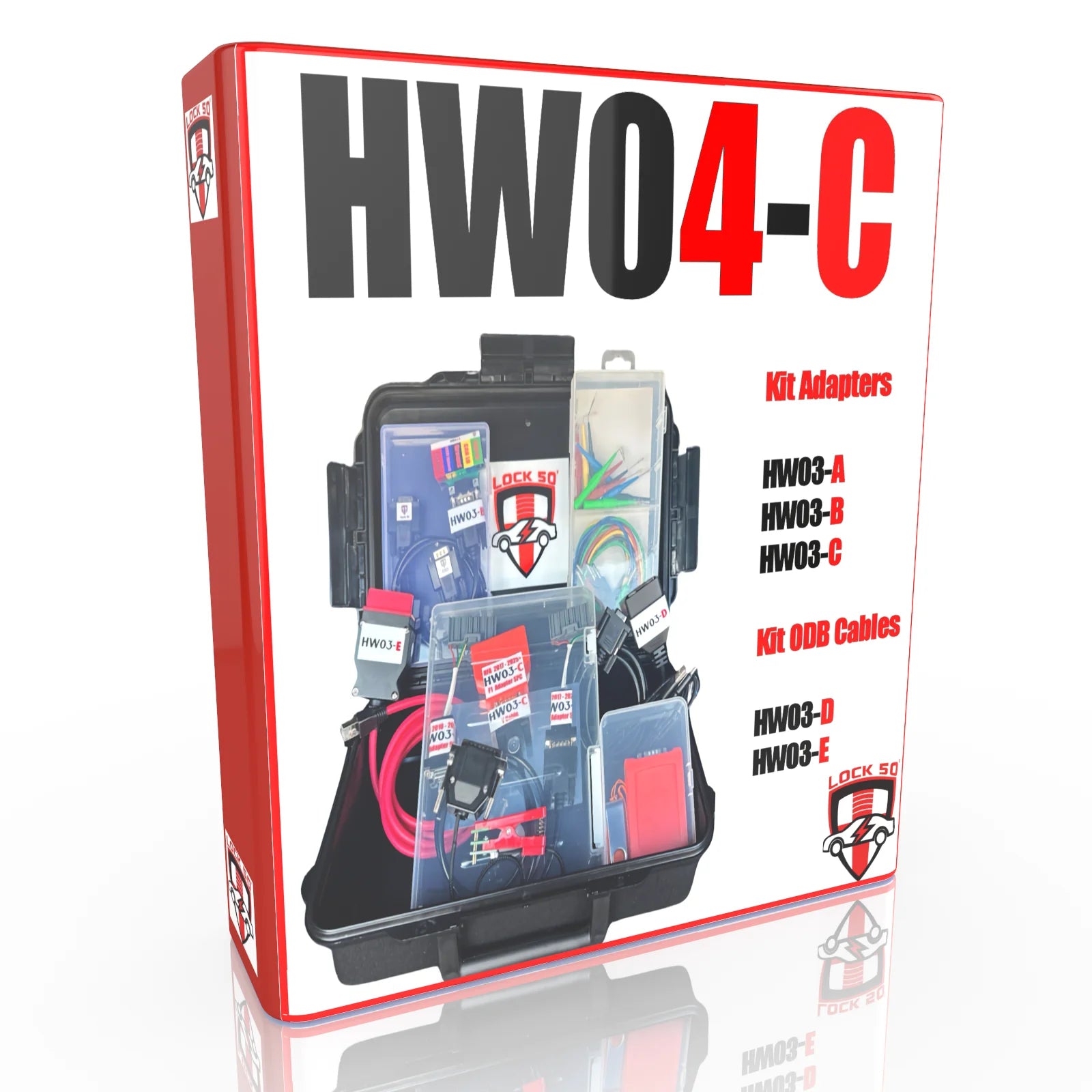

Lock50 Contents:

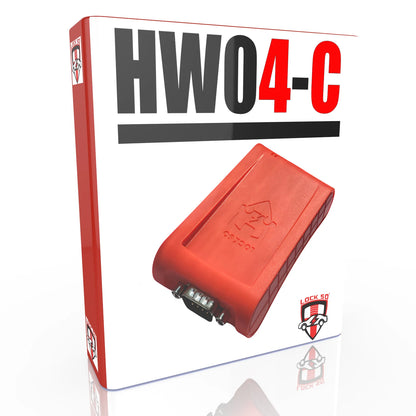

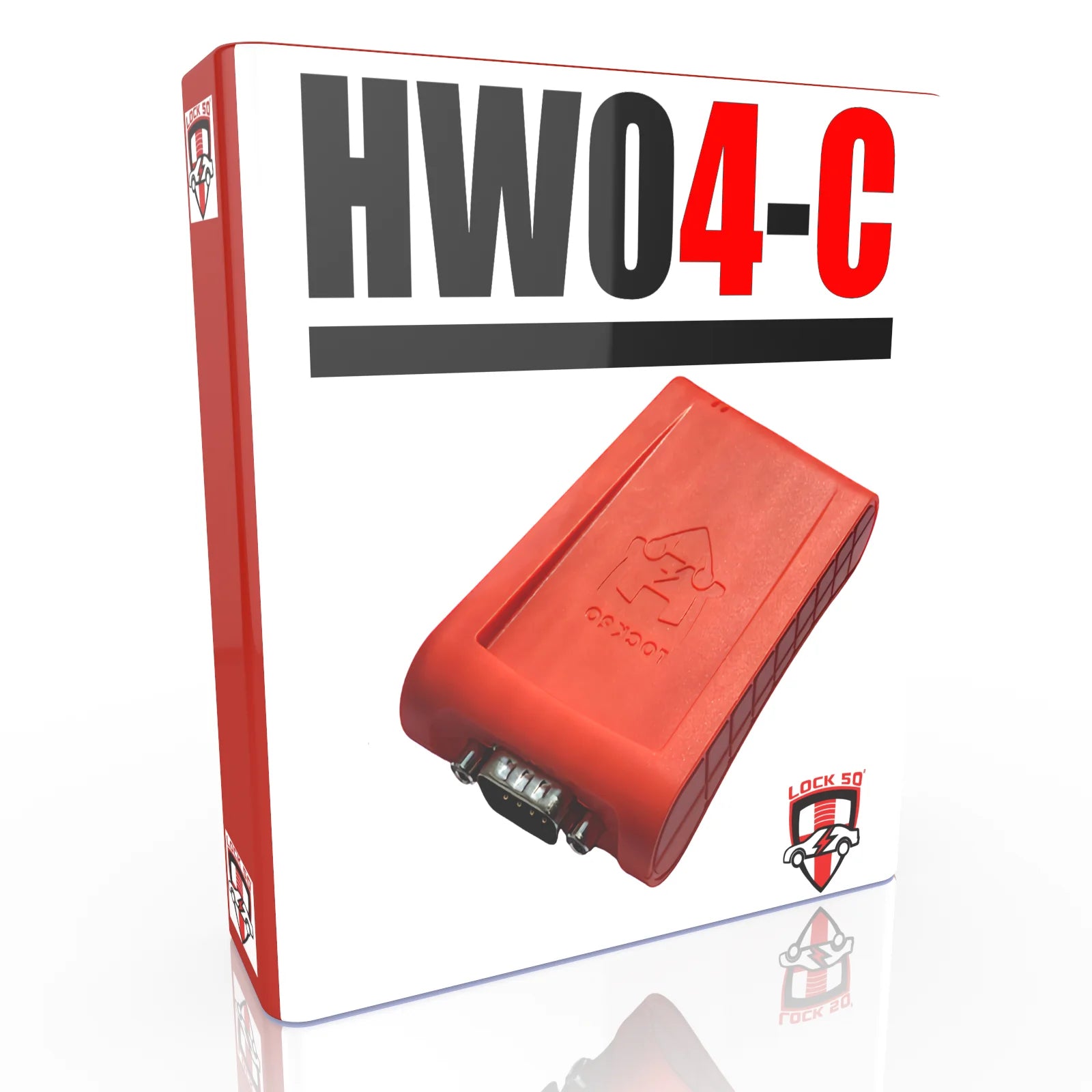

• 1 × HW04 Device

• 1 × HW03-A SPC Read/Write Adapter for Unlocked MCU

• 1 × HW03-B CAN Wires (Alarm-Off for Vehicles 2010–2022)

• 1 × HW03-C RFA Adapter Cable (Vehicles 2010–2024+)

• 1 × HW03-D OBD Cable (All CAN Vehicles 2010–2022)

• 1 × HW03-E OBD Cable (DOIP EVA2 Vehicles 2021–2024+)

• 1 × HW03-F OBD Cable (CAN Vehicles 2017–2024+)

• 1 × USB Flash Drive with Lock50 Software Application

• 1 × USB Cable

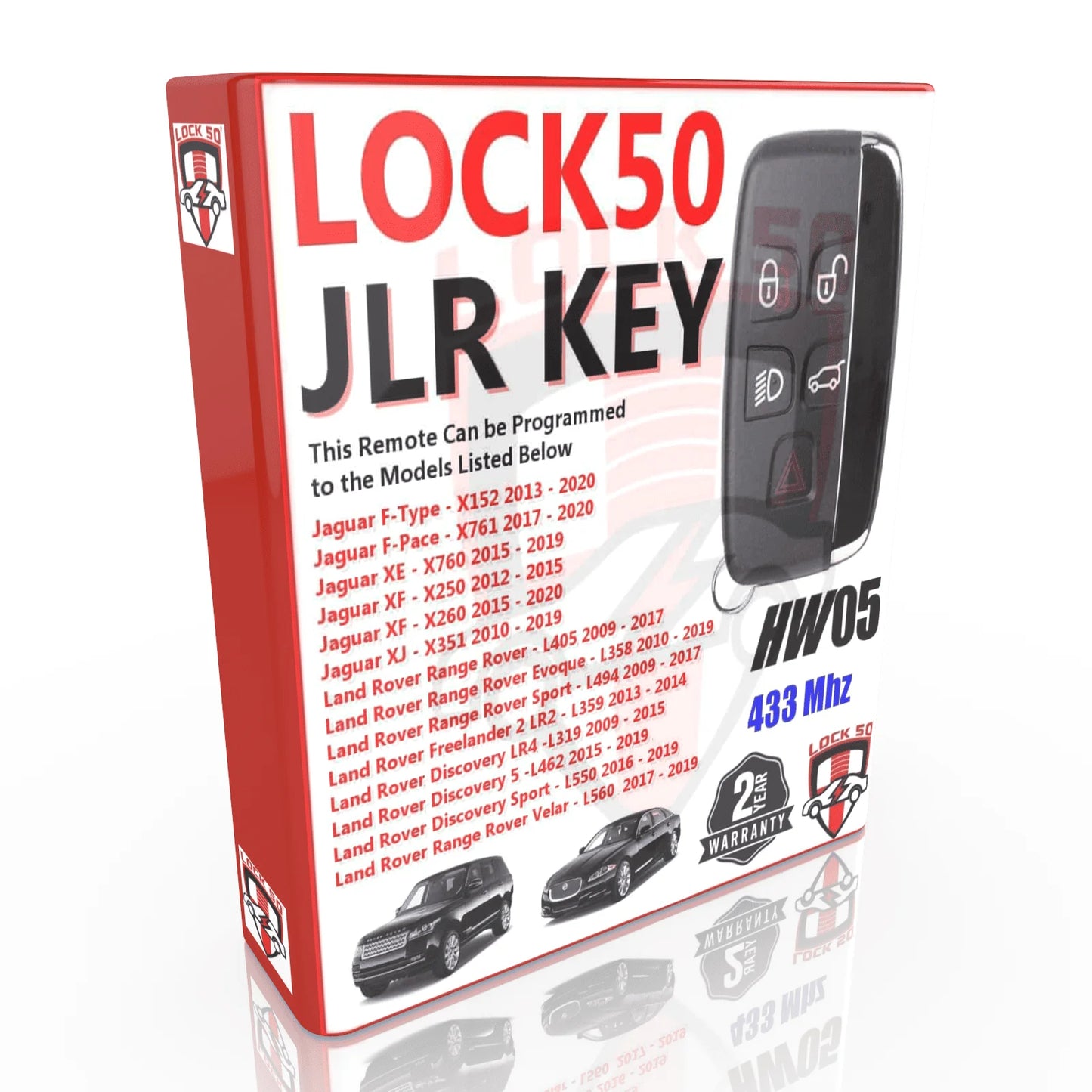

• 10 × HW05/HW06 Lock50 JLR Change ID Keys

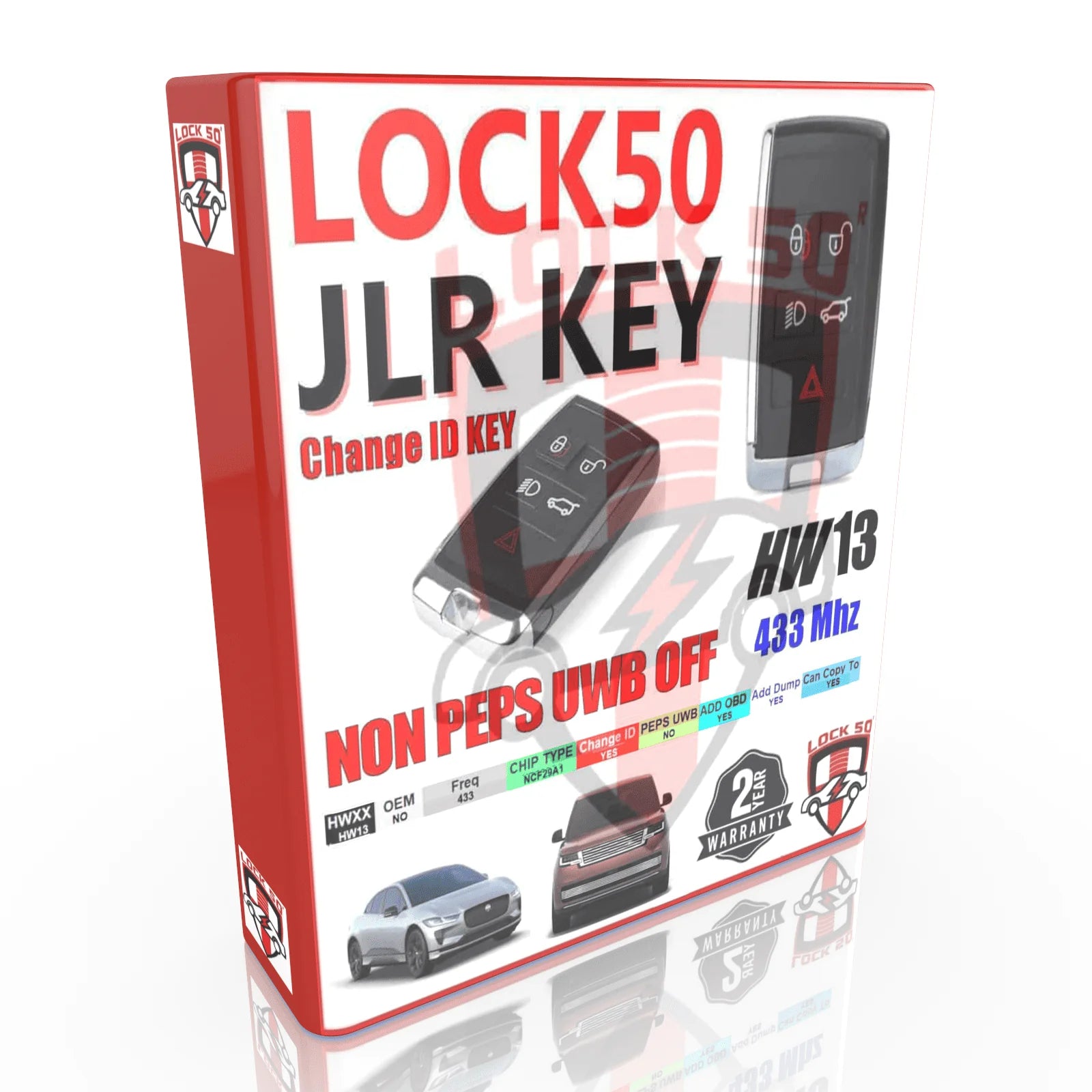

• 10 × HW13/HW14 Lock50 JLR Change ID Keys

• Total Value of keys £2500

For more details, download the user guide: Lock50 HW04-C Tool Kit
